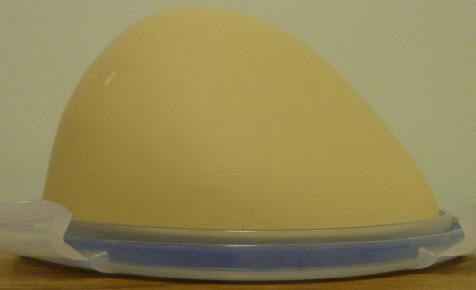

Ultrasound Breast Phantom
Most Accurate Breast Phantom Mimicking Device for Ultrasound Applications
Yezitronix' Breast Phantom model is suitable for:
Fine needle aspiration training, guided needle biopsy procedure, robotic applications, testing, teaching and demonstration
The breast phantom construct mimics average 3D shape, size, mechanical properties and ultrasound echogenicity of a human breast.
Fine needle aspiration training, guided needle biopsy procedure, robotic applications, testing, teaching and demonstration
The breast phantom construct mimics average 3D shape, size, mechanical properties and ultrasound echogenicity of a human breast.
Specifications:
Multi-layer material - each tissue (fat, cysts or lesions) is independent and has its own characteristics defined by a real 3D shape, gray level and mechanical properties.
There are embedded cysts and lesions in the breast phantom to simulate biopsies or needle aspiration procedures.
Multiple usages of the same packaged breast phantom during an extended period of time (needle tracks fade with time).

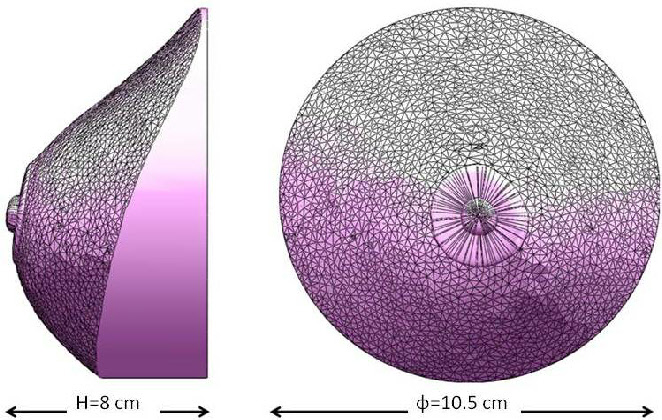

Breast dimension:
Diameter: 10.5 cm
High: 8.0 cm
Enclosure dimension:
Diameter:15.5 cm
High:8.3 cm
Suitable for :
OEMs. medical devices simulation, robotic system calibration, hospitals, clinics, med schools training and demonstrations.
OEMs. medical devices simulation, robotic system calibration, hospitals, clinics, med schools training and demonstrations.
Download PDF:
Ultrasound Breast Phantom
Available Models :
- Regular mode with 4 cysts and 4 lesionsis: B-RG-1.2
- Multi-modality mode (Ultrasound, CT, MRI) is: B-MM . 1.2
- With extra cysts and lesions is: B-EX . 1.2
- Coloured components (Cysts, lesions) for biopsy training is: B-CC - 1.2
- Custom design according to customer specifications is: B-CD . 1.2

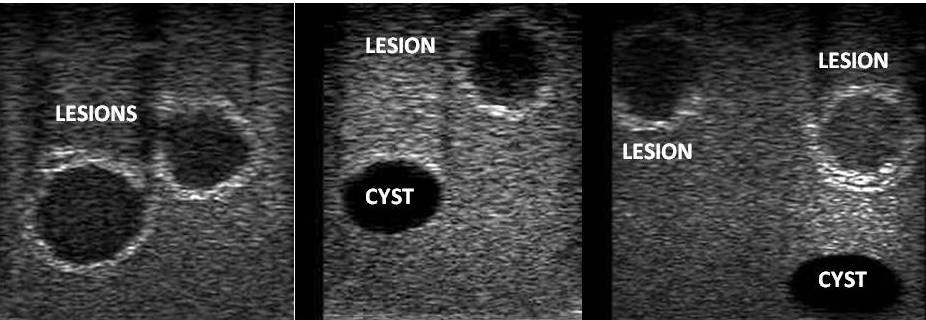

Ultrasound image of breast phantom lesions and cysts
Technology developed with the collaboration of the scientists from NRCC-National Research Council of Canada and surgeons at the department of urology at the London Health Sciences Centre in Ontario, Canada.
Patent Pending.
Patent Pending.
All components are based on Yezitronix' new unique MajesticMix material.
Speed of propagation ~1540m/s
Speed of propagation ~1540m/s
